What is an Optical Mechanical Shutter?

An optical mechanical shutter is the “gatekeeper” of light in an optical system. It is a device that controls exposure time through mechanical components. Its functions go beyond traditional camera shutters, extending to applications such as infrared imaging calibration, scientific research, and industrial or medical systems. These precision mechanical assemblies are typically driven by actuators such as solenoids, enabling accurate opening and closing operations. With programmable timing, they precisely regulate the passage or blockage of light, thereby ensuring optimal exposure control and superior system performance.

Shenzhen Kuyang specializes in the research, development, manufacturing, and customization of high-performance optical mechanical shutters, meeting the stringent demands of modern photonics applications. Our shutters deliver high reliability and precision across diverse fields including optical imaging, semiconductor manufacturing, and medical laser systems.

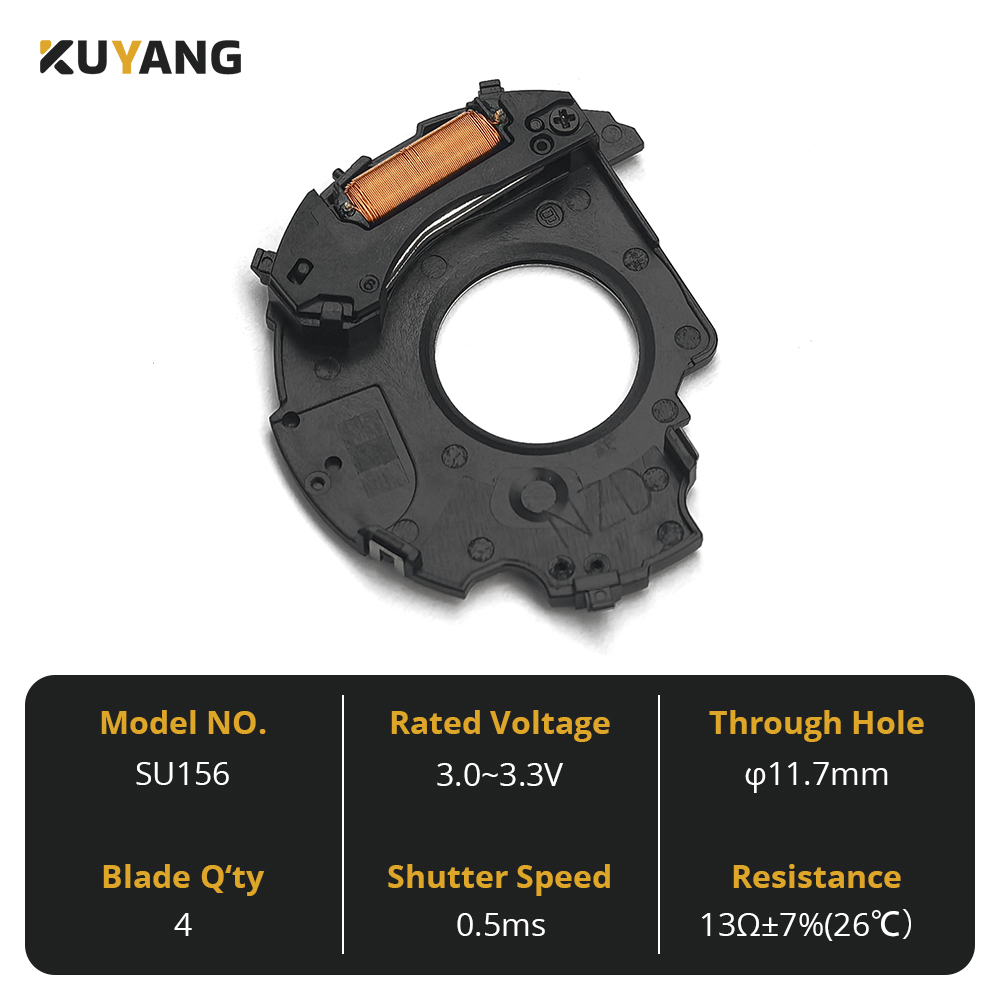

Basic Structure of Optical Mechanical Shutters

Blades or Curtains: Made of metal or resin materials, responsible for blocking or allowing light to reach the sensor or source. Their size is designed according to the effective area of the sensor or light source.

Actuator: The “muscle” of the shutter system that physically opens and closes the shutter. Commonly composed of fast-response solenoids or motors, selected based on the load requirements of the blades or curtains.

Levers or Gears: In traditional film cameras, shutter speed is adjusted through a gear linkage, with a spring storing energy during cocking and releasing it upon triggering. In infrared calibration shutters, levers are often used to drive the blade motion.

Working Principle of Optical Mechanical Shutters

• Activation / Drive: The shutter opens according to the applied driving voltage conditions.
• Exposure Control: Based on the preset shutter speed (e.g., 1/2000 second) and exposure duration, a reverse voltage is applied to close the shutter.
• End of Exposure: Once the shutter is fully closed, light is blocked, completing one exposure cycle.

Functions of Optical Mechanical Shutters

1. Imaging Systems Control exposure time to deliver high-quality images.
2. Infrared Thermography Block thermal sources, enable temperature calibration, and provide accurate imaging results.
3. Advanced Scientific Research Used in spectrometers, astronomical instruments, and quantum experiments requiring precise photon timing.
4. Medical Technologies Protect sensitive tissue in laser surgical systems, control exposure in diagnostic imaging devices, and deliver precise light dosage in photodynamic therapy.
5. Industrial Precision Applications Applied in semiconductor lithography, laser material processing (cutting, welding, engraving), and quality control inspection systems.

How to Select the Right Optical Mechanical Shutter

When choosing an optical mechanical shutter, consider the following key factors:

• Response Time: How fast must the shutter operate?
• Aperture Size: What beam diameter needs to be controlled?
• Duty Cycle: At what frequency will it operate?
• Environmental Conditions: Are there specific temperature or vacuum requirements?
