In modern imaging technology, controlling the amount of light reaching a sensor is crucial. This is where an optical shutter comes into play. Often described as the “gatekeeper” of light, an optical shutter precisely manages exposure time, ensuring high-quality imaging across applications — from drones to thermal imaging systems.

Understanding Optical Shutters

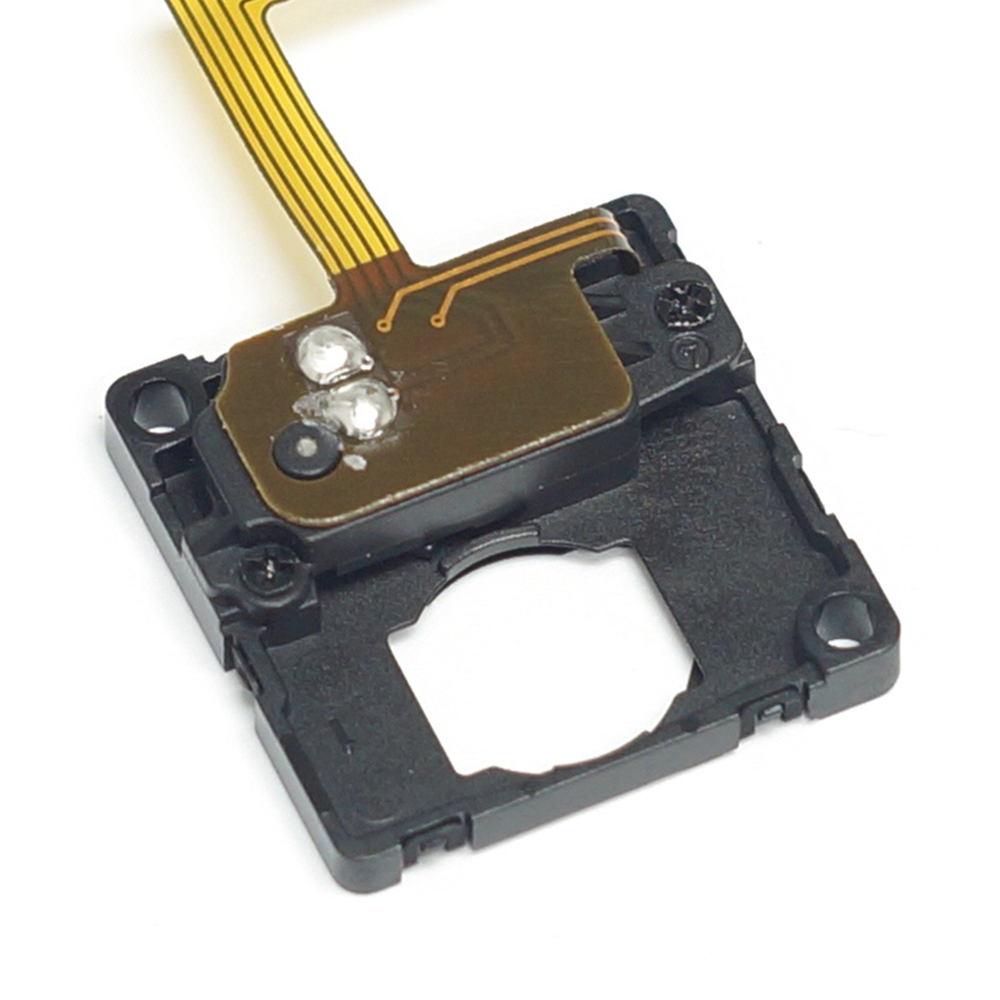

An optical shutter is a mechanical device that regulates light passing through an optical system. By opening and closing at controlled speeds, it allows sensors to capture accurate images under varying lighting conditions. Unlike electronic shutters, which rely solely on sensor electronics, optical shutters provide mechanical precision and can operate in extreme conditions, making them ideal for specialized imaging tasks.

How Optical Shutters Work

Typically, an optical shutter consists of blades or a diaphragm mechanism that opens and closes rapidly. When light passes through, the sensor records the image; when the shutter closes, light is blocked. Speed, timing, and calibration are critical, especially for high-speed capture or infrared imaging. Properly calibrated shutters ensure consistent, precise results in professional imaging setups.

Types of Optical Shutters

Different shutter types meet diverse imaging needs:

Mechanical Shutters:
Traditional moving-blade shutters providing reliable, precise exposure control. Commonly used in industrial cameras and scientific instruments.

High-Speed Shutters:
Designed for ultra-fast capture, often used in UAVs, scientific research, and high-speed motion analysis.

Infrared Shutters:
Specialized for accurate imaging in night vision and thermal cameras.

Applications in Modern Imaging

Optical shutters enhance performance across industries:

Security Cameras:
Ensure proper exposure in varying lighting conditions.

Drones (UAVs):
Capture high-speed imagery without motion blur.

Night Vision and Infrared Systems:
Provide precise control for thermal and low-light imaging.

Scientific Imaging:
Maintain accuracy in laboratory instruments and measurement devices.

These applications highlight how optical shutters improve stability, precision, and clarity across modern imaging systems.

Kuyang’s Commitment to Precision
Our products are engineered for durability, precision, and reliable performance in infrared imaging, UAV cameras, night vision systems, and scientific instruments.
