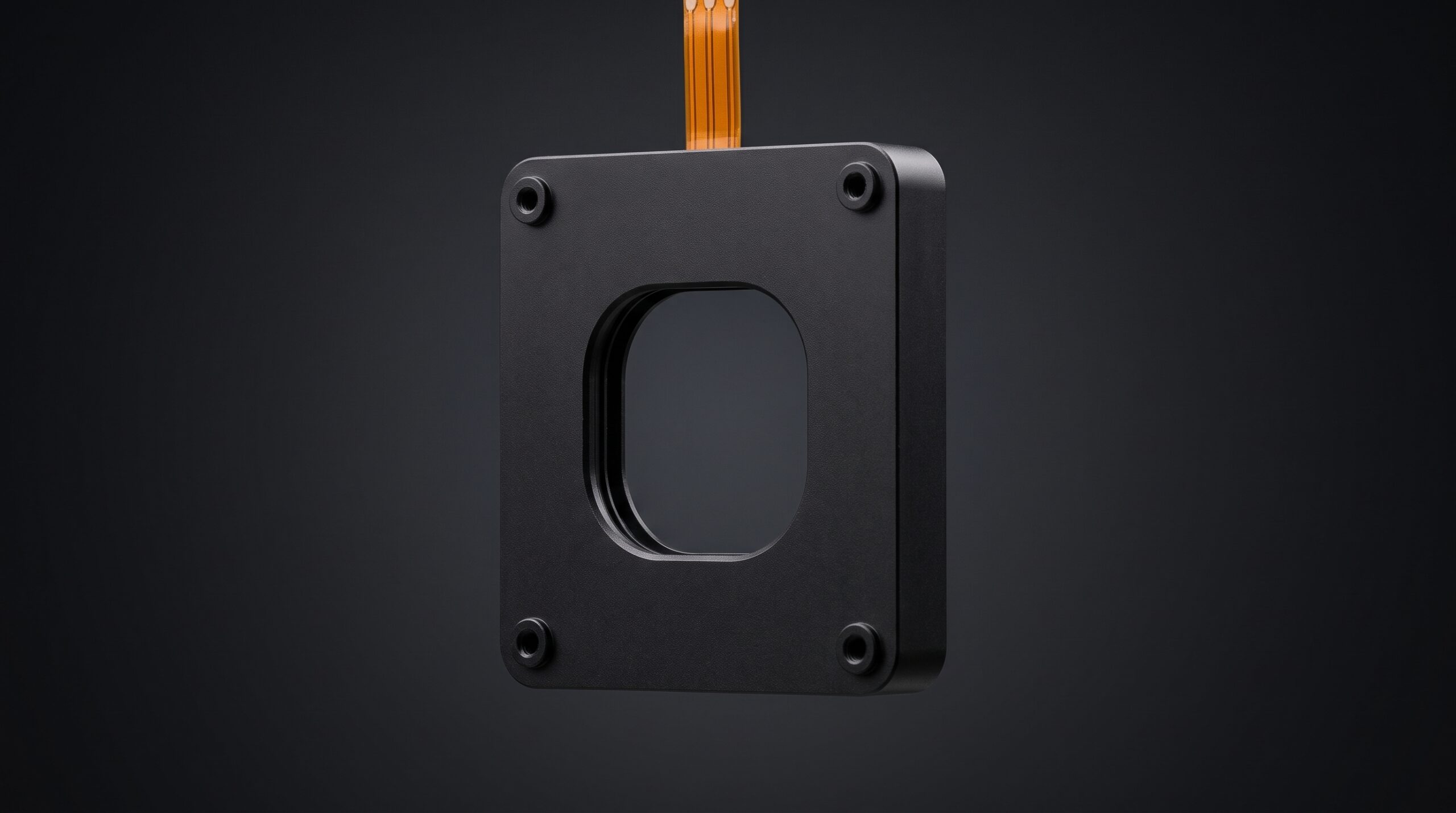

Unprecedented Miniaturization: Large Aperture in Ultra Minimum Outsize

As thermal imaging modules chase extreme miniaturization, Light weight，Larger aperture，the mechanical shutter has long been a bottleneck limiting the thermal camera module thickness. KUYANG’s next-generation ultra-micro shutter shatters this barrier completely.

Ultimate out Size, Uncompromising Large Aperture,

Ultra-slim design, freeing critical space for module stack-up,

over 45% aperture to frame ratio, ensuring a vignetting-free optical path,

Ultra-lightweight construction, suitable for dones and handle devices.

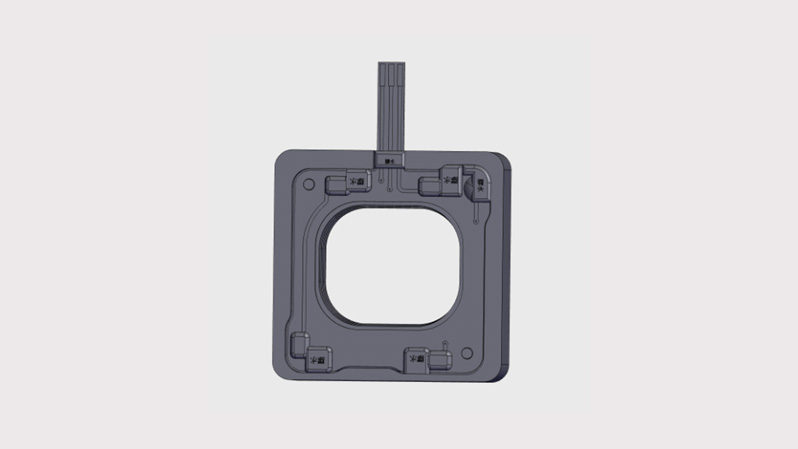

Outer Dimensions:13mm x 13mm

Shutter Thickness:3.46mm

Aperture Size:  7.7mm x 6.55mm

Weight: 1g

Precision Actuation: Optimized for WLP Detectors

Drive Voltage: 3.3V DC

Coil Resisitance:12.5 ohm +/- 10%(at 25C ambient)

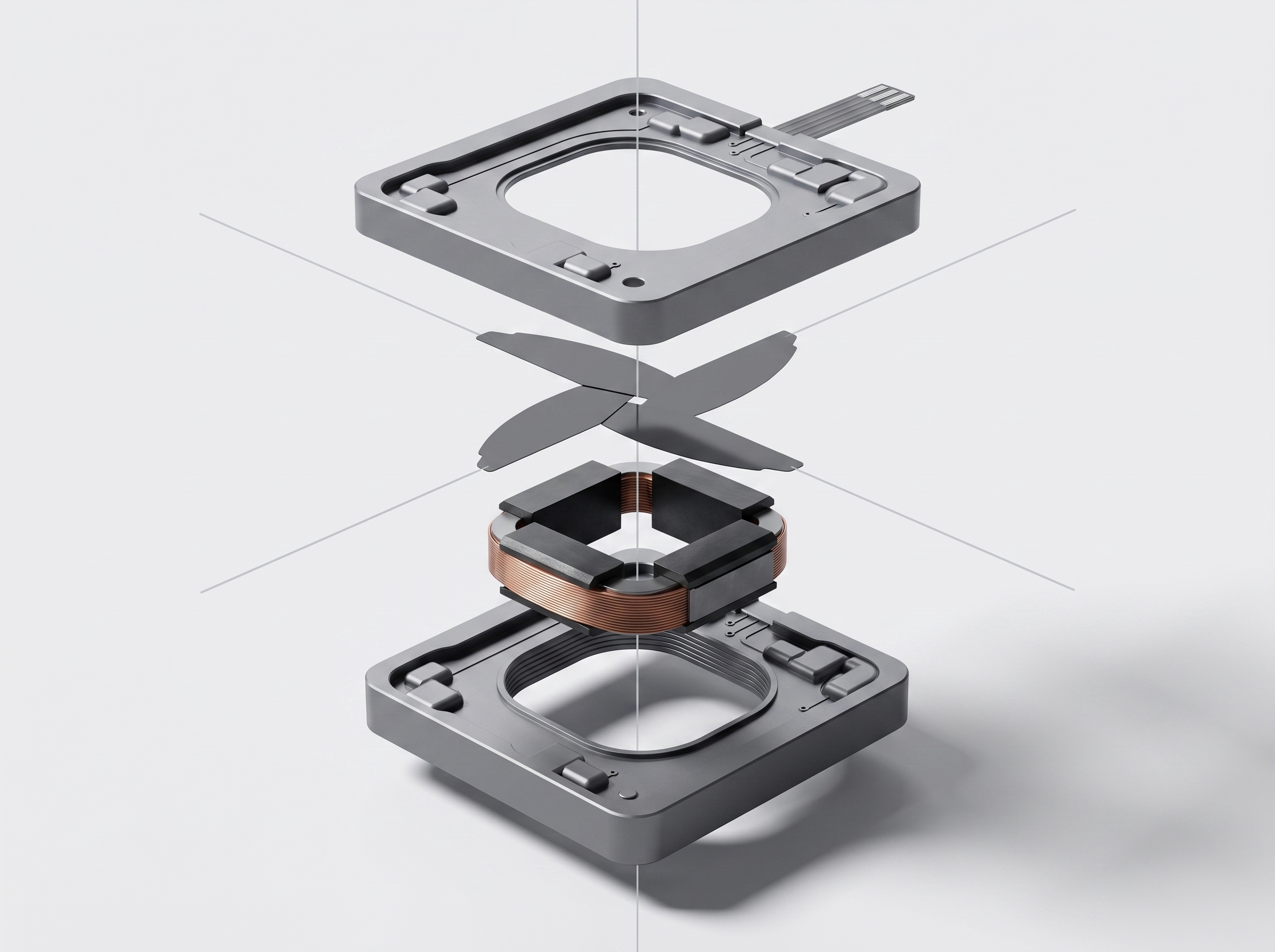

Blade Assembly: 4 high-extinction PET blades

Detector Compatibility:384×288 / 12um(WLP VOx microbolometers)

640×512 / 8um(Next-generation ultra-fine pitch sensors)

Key Performance Specifications

Parameter	Specification
Model	KUYANG Ultra-Micro Series
Overall Size	13mm x 13mm x 3.46mm
Clear Aperture	7.7mm x 6.55mm
Drive Voltage	3.3V DC
Coil Resistance	12.5 ohm +/- 10% (25C)
Blade Type	4-Blade PET (High Extinction)
Supported Resolutions	384×288 (12um), 640×512 (8um)

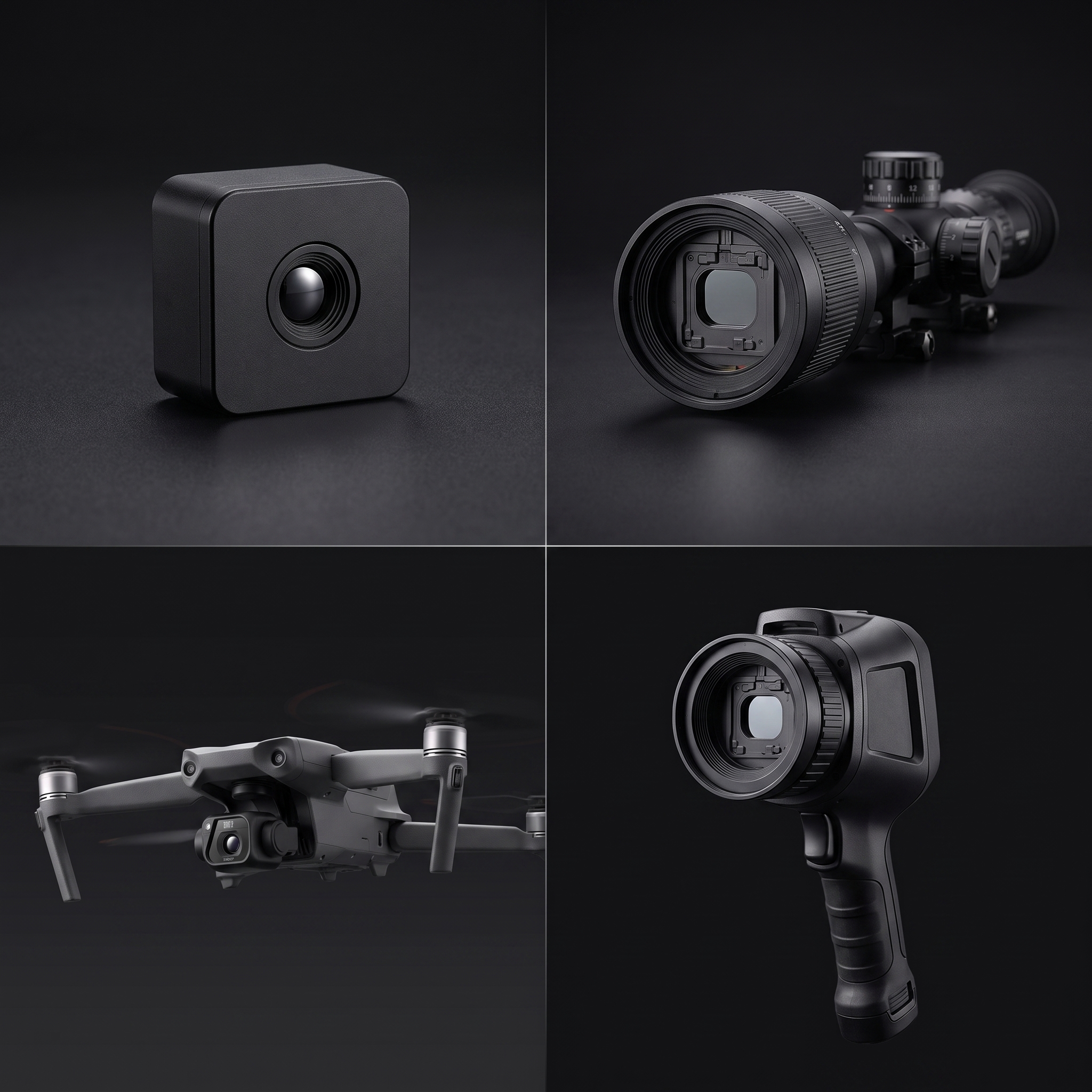

Application Scenarios

Application	KUYANG Shutter Value
Thermal Camera Modules	Ultra-slim design reduces overall core thickness
Thermal Imaging Sights/Scopes	High-extinction blades ensure precision dark-field calibration
Drone Thermal Cameras	Gram-level weight optimization for extended flight time
Handheld Thermal Imagers	Low-power actuation extends battery life

About KUYANG

KUYANG has been deeply rooted in the infrared thermal imaging industry for decades, dedicated exclusively to high-performance infrared shutter components.

40 Years of Precision Design Heritage

• , with profound expertise in the core physics of NUC calibration.

Full In-House Design & Manufacturing

• , from electromagnetic circuit optimization to proprietary blade coating processes — every critical component is manufactured internally.

Comprehensive Customization Services

• : Full ODM/OEM support for structural dimensions, electrical parameters, and mounting interfaces.

Whatever your detector specification — standard or bespoke — KUYANG delivers the most precisely matched shutter solution.

REQUEST THE 13x13mm DATASHEET & 3D STEP FILES
