Gearbox Motor
KUYANG manufactures miniature solenoid-based optical shutter for use in infrared cameras, mapping camera, digital camera, hunting camera and thermal camera and night vision scope.
✓ High Precision
✓ High Speed
✓ Low power consumption
✓ Durability
✓ Quietness
✓ Rich Line up
✓ Customize/ODM&OEM
Contact us for more details.

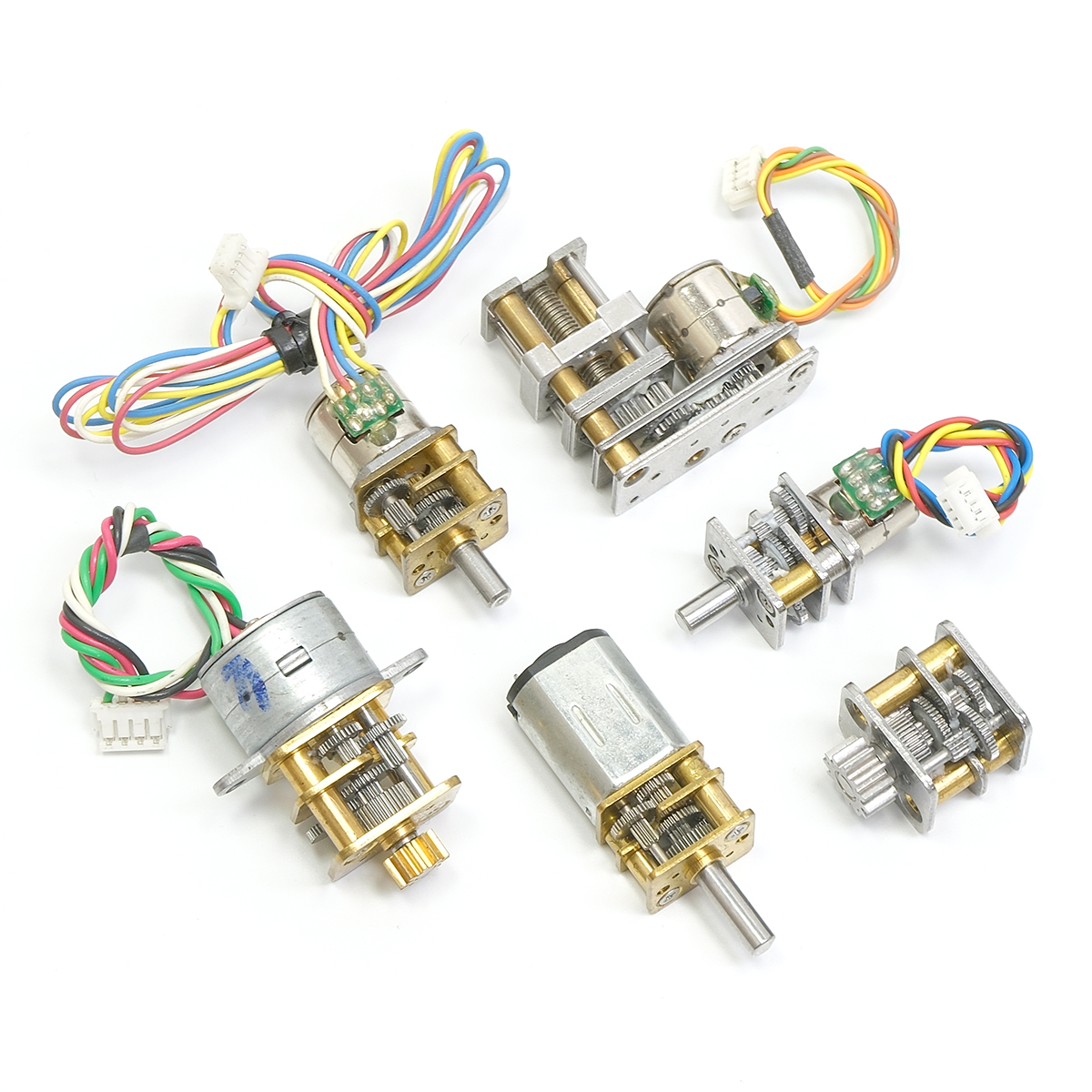

Gearbox Motor
Gearbox motor uses a permanent magnet (PM) as a rotor. This design provides excellent holding torque and provides good performance at lower speeds. Our PM motors are engineered for precision and reliability in various applications.
✓ High Precision
Digital controlled electronic pulses ensure exact angular positioning
✓ Wide Applications
Automotive, electronics, medical devices, and more
✓ Reliable Performance
Consistent operation with excellent durability

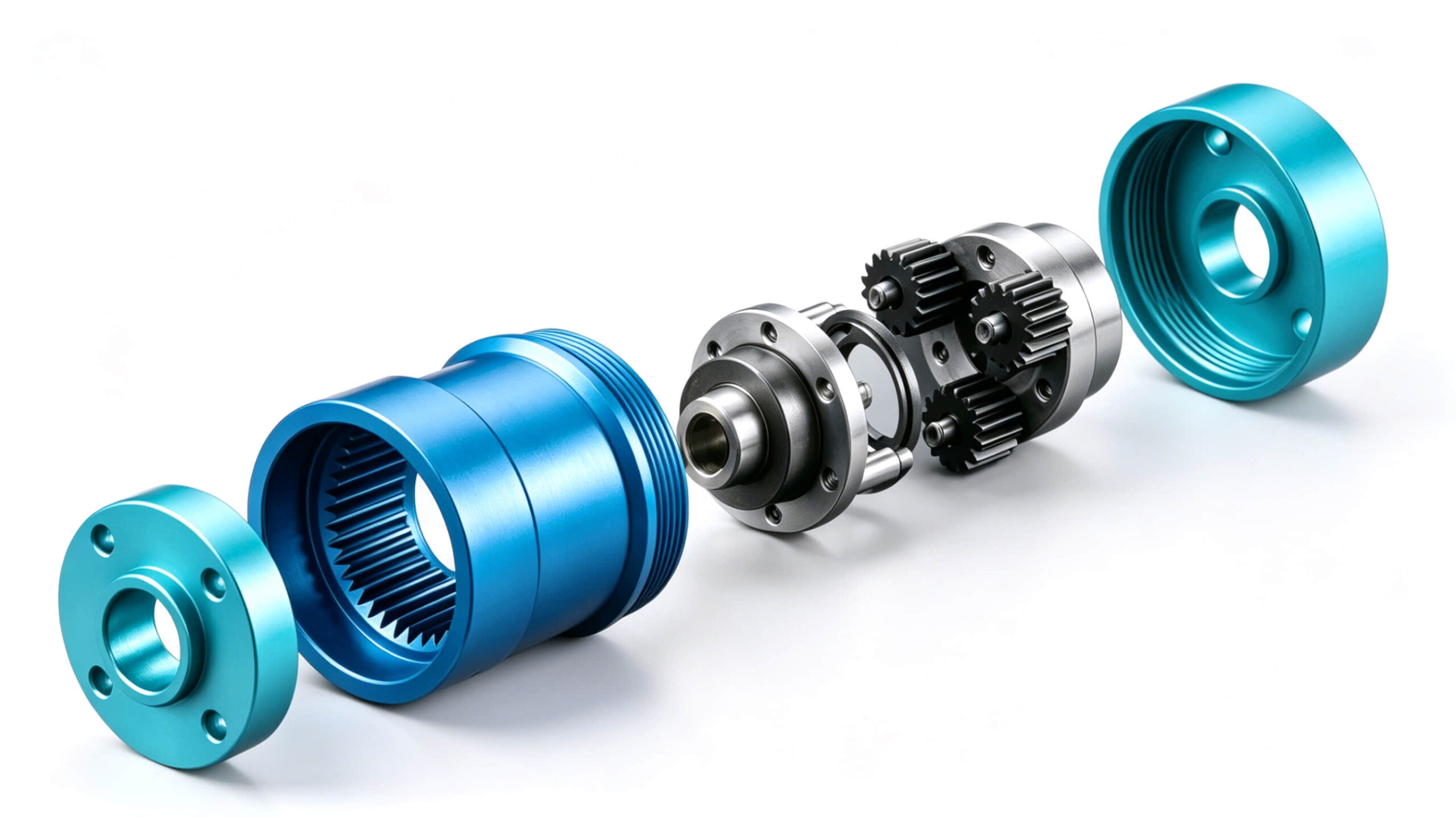

Precision Metal Processing
Advanced CNC Machining
Size Range
Φ0.4 – Φ36.0mm
Max Length
500mm
✓ Through hole tolerance: 0.005mm min
✓ Out dimension tolerance: 0.005mm min
✓ Surface roughness: Ra 0.8
Manufacturing Capabilities
State-of-the-art equipment and precision engineering for superior product quality

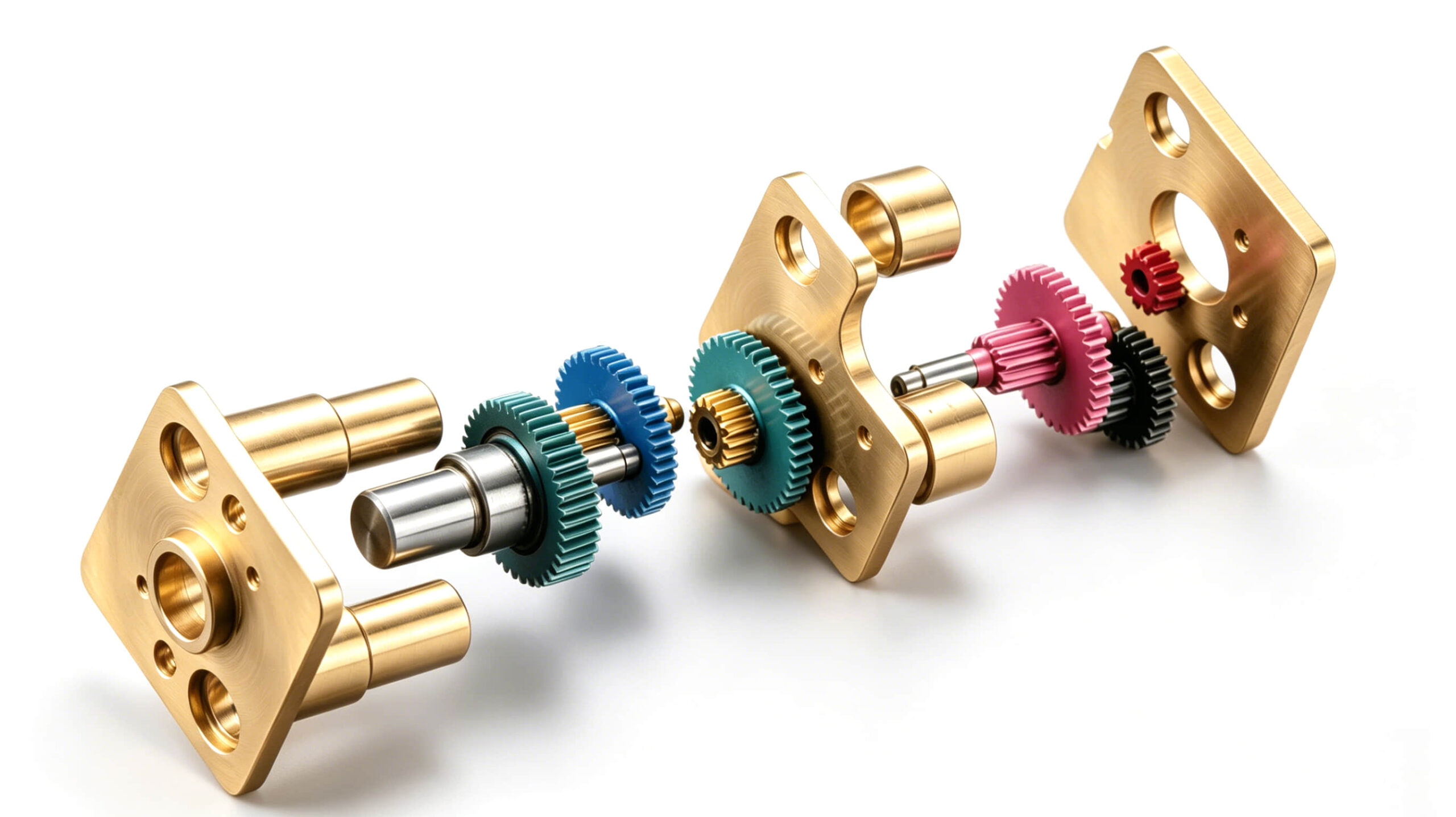

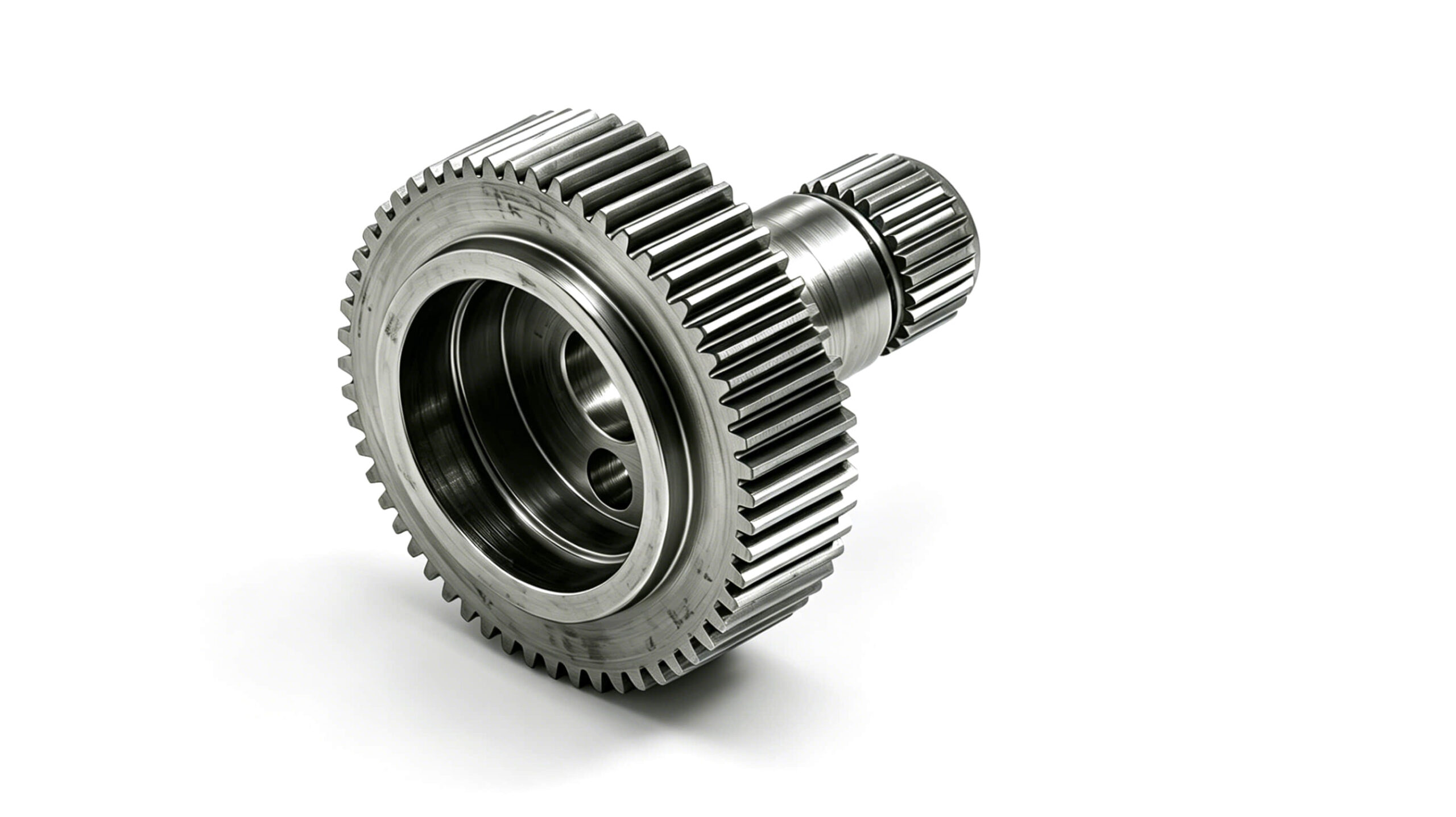

Micro Gear Processing
Swiss WAHLI Hobbing
Module Range
M0.1 – M1.0
Teeth Count
6 – 200 teeth
✓ Max out dimensions: 40mm
✓ Gear cutting length: 30mm
✓ High precision hobbing technology
Customized to Your Specifications
We understand that every application has unique requirements. That’s why we offer comprehensive customization services to meet your specific needs. From shaft dimensions to performance characteristics, we can tailor our stepping motors to perfectly fit your application.
✓ What we can customize:

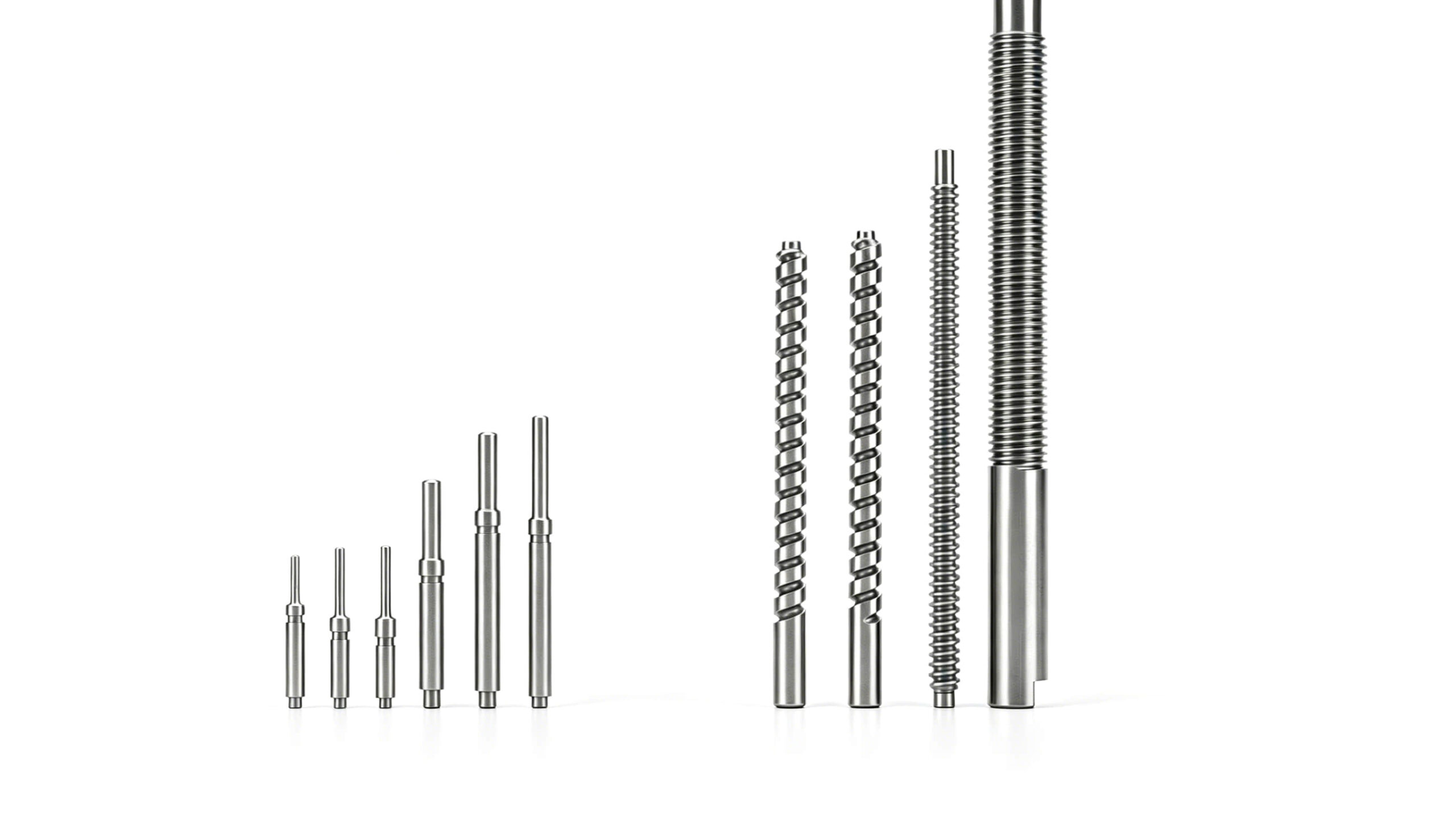

Lead Screw Processing
Small Pitch Thread Rolling Process
M (Diameter)
1.5mm
2.0mm
P (Pitch)
0.15-0.5mm
0.2-0.5mm
✓ Total Length tolerance within 0.03mm
✓ Outer diameter tolerance:0.006-0.01mm
✓ Surface roughness Ra:0.2max

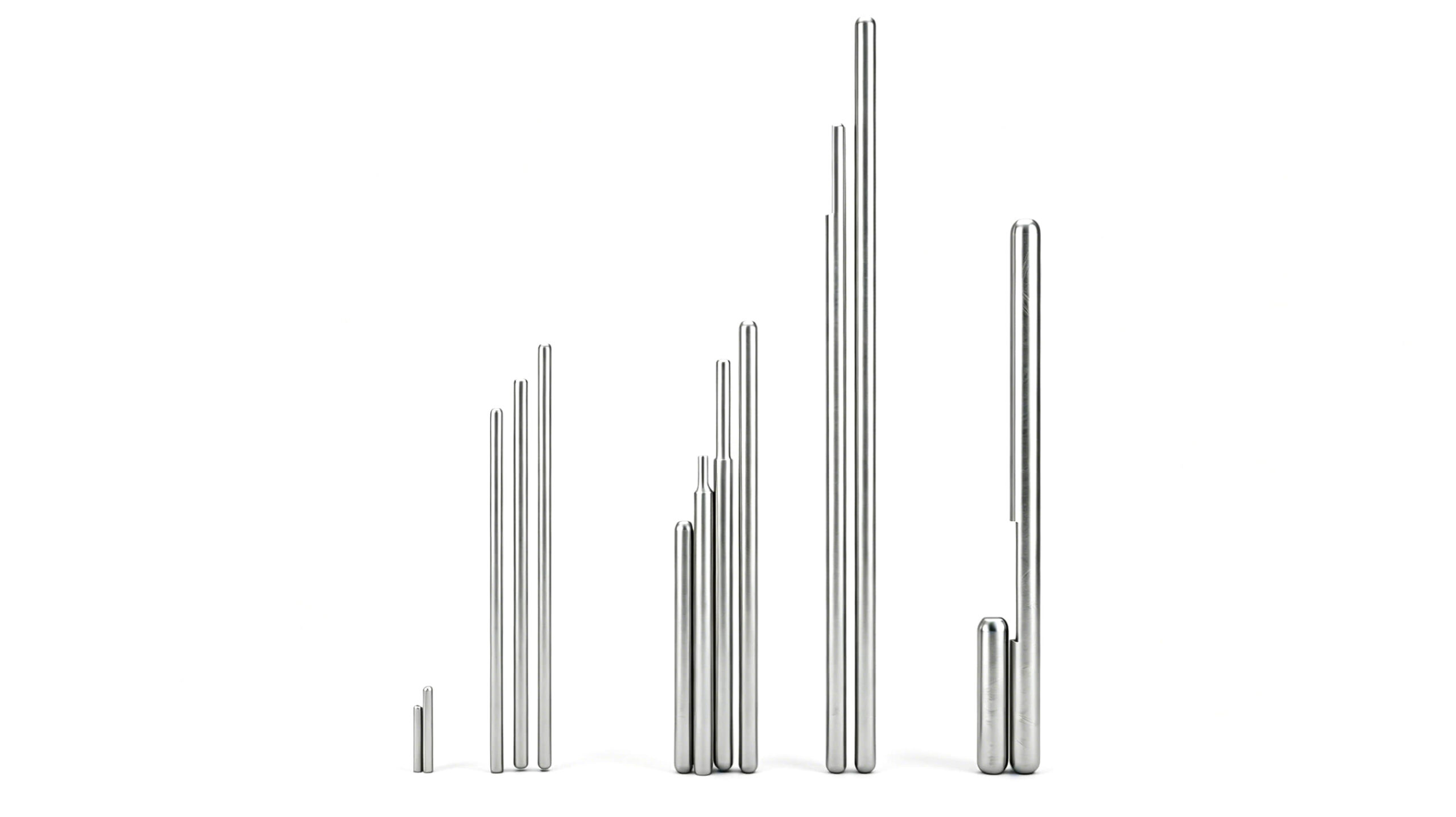

Shaft Processing
Precision Shaft Manufacturing
Outer Diameter
Φ0.7 – Φ2.0mm
Total Length
Up to 45mm
✓ Spherical radius precision: ±0.15mm
✓ Roundness tolerance: 0.5-1μm
✓ Surface roughness: R0.07
