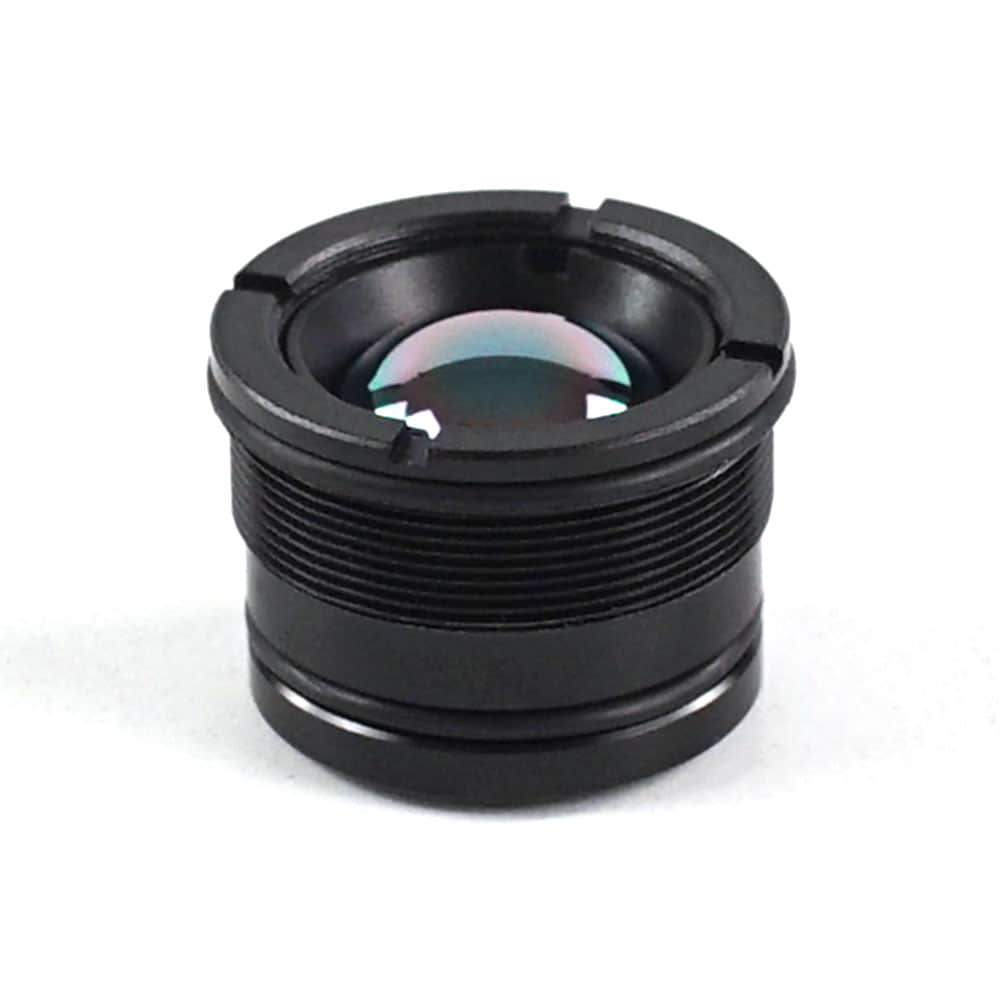

| EFL | 4.8mm |
| Sensor | 640×512 12μm |
| Fno. | 1.0 |
| FOV(H*V*D) | 90.1°*72.5° |
| Wavelenght | 8-12μm |
| Transmittaance | >86% |
| Front Lens Coating | Carbon-like film |
| Focus | Manual focusing |
| Focus Distance | 0.2m~∞ |
| Athermalizing | Optical thermalization |
Key Features
✓ Suitable for 640×512 12μm resolution sensor
✓ Wide FOV
✓ F1.0 Large Aperture
✓ High Optical Transmittaance
✓ Optical Athermalization
✓ Lightweight and Compact Design
Typical Applications
• Drone Thermal Imaging Payloads
• Robotics & Autonomous Systems
• Security & Surveillance
• Handheld Thermal Cameras
• Vehicle-Mounted Thermal Imaging
| EFL | 4.8mm |
| Sensor | 640×512 12μm |
| Fno. | 1.0 |
| FOV(H*V*D) | 90.1°*72.5° |
| Wavelenght | 8-12μm |
| Transmittaance | >86% |
| Front Lens Coating | Carbon-like film |
| Focus | Manual focusing |
| Focus Distance | 0.2m~∞ |
| Athermalizing | Optical thermalization |
