Shutter

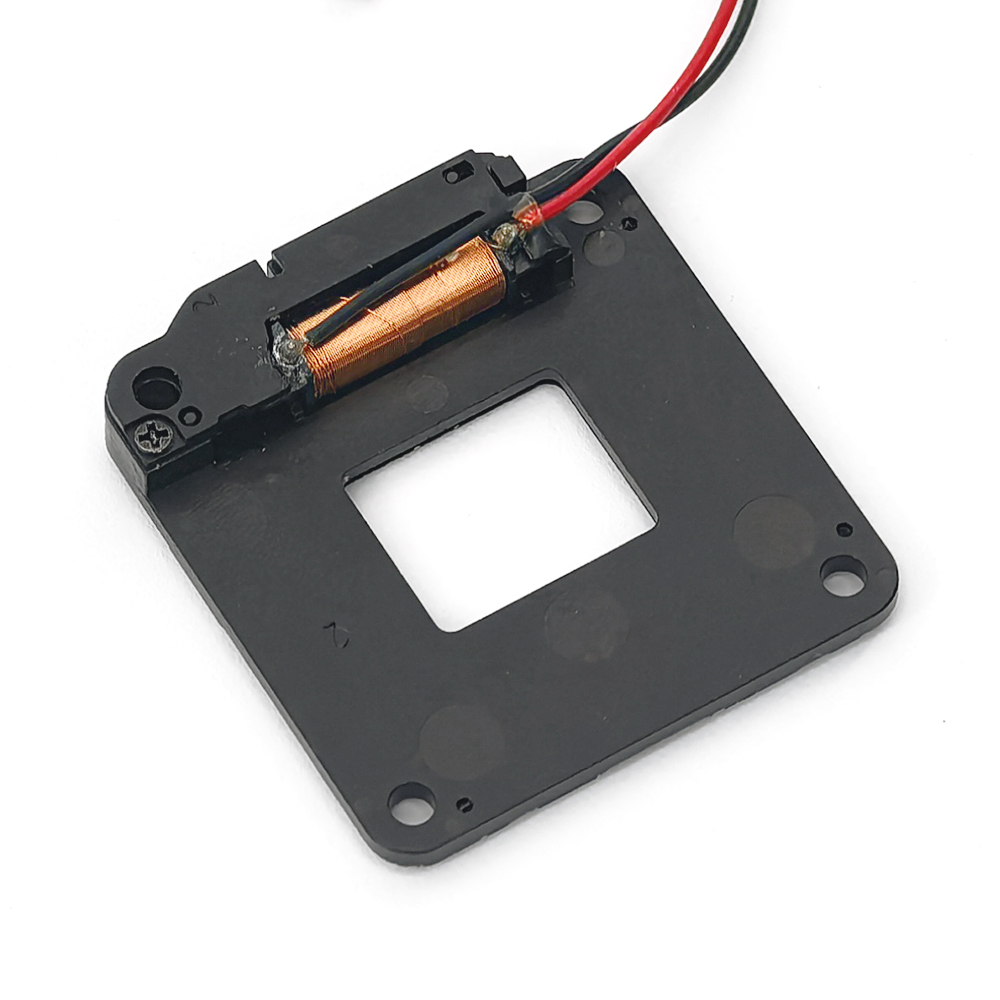

KYSU136 optical shutter window-type 11.7×9.75mm IR shutter
| Outer size (mm) | 29.38×28×4.8 |
| Window Size (mm) | 11.7×9.75 |
| Rated voltage/Current (DC/V) | 3.0~3.3V |
| Resistance(Ω) | 13Ω±7%(26℃) |
| Blade Q’ty(pcs) | 4 |
| Blade Material | – |
| Operation Temperature(℃) | -40℃~+85℃ |
