| Outer size (mm) | 37.5×37.5×5.99 |
| Window Size (mm) | 17×14.2 |
| Rated Current (DC/V) | 200mA |
| Resistance(Ω) | 13Ω±10% |
| Blade Q’ty(pcs) | 4 |
| Blade Material | PET |
| Operation Temperature(℃) | -40~+85 |
Shutter

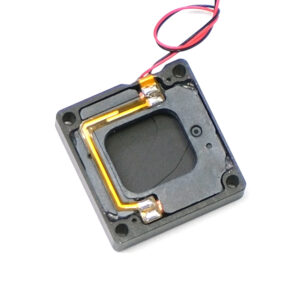

KYSU144 thermal imaging shutter window-type 17×14.2mm optical shutter
Features:
• Suitable for 1280×1024 / 640×512 / 384×288 thermal detector
• Aperture Size 17 x 14.2mm, Shutter Speed ≦50ms
• Bistable Solenoid Driven, Constant current 200mA
• Power Consumption, Cable Length, Connector support Customization
Application:
Thermal Imager,Night Vision Scope, etc…
