1. Top Section: Core Value Proposition
Headline:Precision IR-CUT Switcher with 40 Years of Actuator Expertise
Sub-headline:Ensure flawless day/night transitions for your high-definition camera modules with KUYANG’s industrial-grade ICR technology.
Key Highlights:
・Ultra-Reliable Actuation:500,000 to 1,000,000+ operations life cycle.
・Fast Switching:Instant <100ms day-to-night transition.
・Low Light Leakage:Precision-molded frames for perfect optical sealing.
・Compact Size: suitable for all kinds of cameras
・Flexible Customization
2. Technical Specifications Matrix
| Parameter | Spec |
| Drive Type | Precision Solenoid / Stepper Motor |
| Aperture Size | Φ6.0mm / Φ8.0mm / Φ10mm (Customizable) |
| Operating Voltage | 3.0V – 12V DC |
| Filter Types | IR Cut Filter /ND Filter(Day) + AR Glass/Visible Filter (Night) (Customizable) |
| Operating Temp | -40°C to +85°C (Automotive grade available) |
| Lead Wire | Customizable |
3. Product Features & Advantages
Premium Filter Coating:

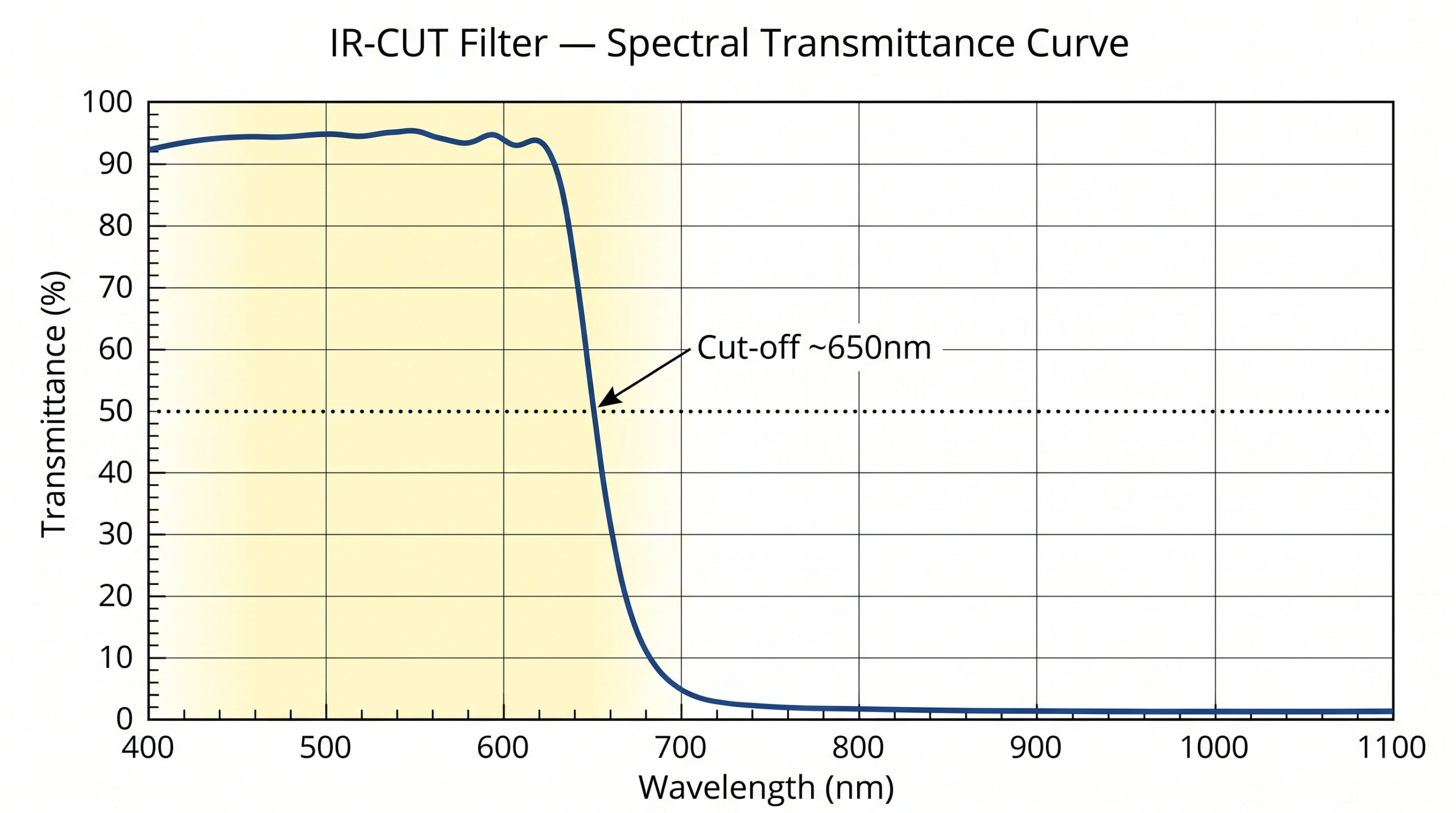

Our IR-cut filters feature multi-layer interference coatings to block IR light precisely at 650nm/700nm, ensuring vibrant, true-to-life colors during the day.
Quiet & Smooth Action:
Optimized electromagnetic circuit reduces mechanical noise, ideal for indoor security and smart home applications.
Robust Mounting:
Universal screw hole patterns compatible with standard M12, CS, and C-mount lens holders.
Environmental Stability:
Fully tested for humidity, vibration, and high-shock environments.
4. Why KUYANG?
40 Years design and production experience in IRCUT field:
We leverage four decades of miniature motor and solenoid design to create the world’s most reliable switching mechanisms.
Rapid Customization:
Need a specific aperture or mounting bracket? Our engineering team provides CAD/STEP drawings
5. Application Fields
Surveillance:
4K/8K IP Cameras, PTZ Domes, and Traffic Monitoring (LPR).
Automotive:
ADAS Cameras, In-cabin Monitoring, and Night Vision Systems.
Smart Home:
Smart Doorbells, Baby Monitors, and Integrated Security Hubs.
Industrial:
Robotic Vision, Medical Endoscopes, and Scientific Imaging.
📧 REQUEST A SAMPLES & TECHNICAL DRAWINGS Ready to upgrade your camera’s night vision? Contact our technical team for the datasheet and 3D models.
